UCP204 Cast Iron Pillow Block Bearing Housing

UCP204 with inner standard size 20mm ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.

item no.:
UCP204
lead time:
7-35 DAYS
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou
MOQ:
1

products details

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.

Mount Bearing UCP204 Specification :

Insert Bearing material :Chrome steel Gcr15 or stainless steel

Housing material : Cast iron

Dimension:

Shaft Dia (d):25 mm

Height (H):33.3mm

Length (L):127mm

Bolt Size:M10

Weight :0.7 kg

UCP205-16 BEARING UNIT

Housing bearings are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).

The bearing unit is consist of pillow block and insert bearing ,the spherical bearing UC205 with pillow block P series,the new bearing nuit is UCP205. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT205,UCF205,UCFL205.

Housing Bearing

Below Here is Mounted Ball Bearing Units No. For Your Reference :

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size (mm)	Weight
	d		H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
	(in)	(mm)	H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
UCWP201		12	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.72
UCWP202		15	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCWP203		17	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCP201		12	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP201-8	1/2		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP202		15	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-9	9/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-10	5/8		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP203		17	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP203-11	11/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP204		20	33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP204-12	3/4		33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP205		25	36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-14	7/8		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-15	15/16		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-16	1		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP206		30	42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-17	1-1/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-19	1-3/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25

We also can provide other brand bearing housing such as ASAHI Pillow Block Bearing.

UCP204 Bearing Housing Have Widely Applications:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

hot tags :

UCP204 Cast Iron Bearing Housing Cast Iron Pillow Block Bearing UCP204 Pillow Block Bearing Cast Iron Bearing UCP204

previous :
Cast Gray Iron 12mm Bearing Unit And Housing UCP201
next :
1"Pillow Block Bearing Housing UCP205-16 With Cast Iron

related products

1"Pillow Block Bearing Housing UCP205-16 With Cast Iron

UCP205-16 with inner standard size 1 inch ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.

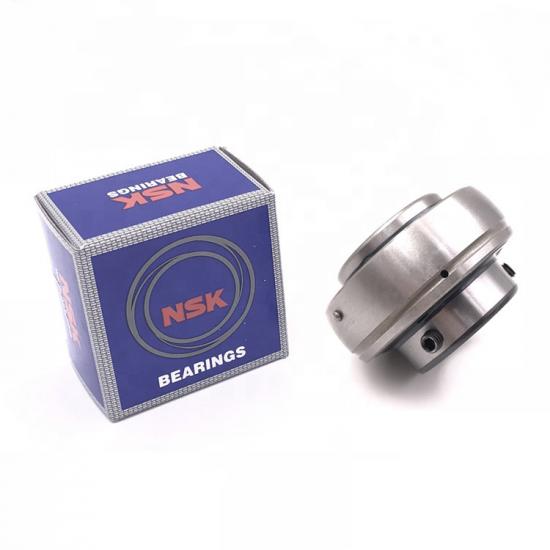

NSK 1 inch Insert Mounted Bearings UC205-16
