Bearing GE45-XL-KRR-B with size 45*155*56.5 mm are produce with Chorme steel GCR15 ,this bearing often matched with a bearing housing ,the new bearing unit is Pillow Block RME45-XL .
item no.:
GE45-XL-KRR-Blead time:
7 daysbrand:
INAshipping port:
GuangzhouMOQ:
100INA Radial insert ball bearings GE45-XL-KRR-B:

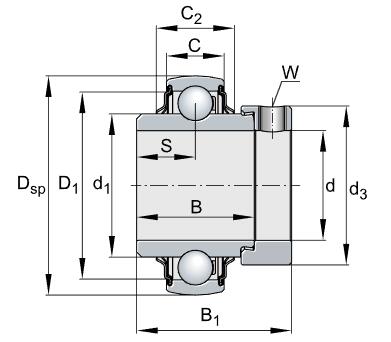

GE45-XL-KRR-B Bearing Specification :
| Bearing No. | GE45-XL-KRR-B | |||
| inner size d | 45 mm | |||
| Outer size DSP | 85 mm | |||
| Outer ring Bore B1 | 56,5 mm | |||
| Iner ring Bore B | 42,9 mm | |||
| C | 22 mm | |||
| C2 | 26,4 mm | |||
| Ca | 6,4 mm | |||
| D1 | 72,3 mm | |||
| d1 | 57,9 mm | |||
| d3 max | 63 mm | |||
| S | 21,4 mm | |||
| W | 5 mm | |||
| m | 0,83 kg | |||
| Cr | 34500 N | |||
| C0r | 20400 N | |||
Housing units have different type such as plummer block, flanged and take-uphousing units in designs. The units can be matched with cast iron or sheet steel housings in which the radial insert ball bearings are fitted. GE45-XL-KRR-B bearing can be matcher with a bearing housing unit ,the new bearing unit is Pillow Block RME45-XL.
We Can Provide Other INA Series Bearing Such As GE**, CNE**, CRAE**,
GRAE25-XL-NPP-B,GNE25-XL-KRR-B,GE25-XL-KRR-B
GRAE40-NPP-B,RAE40-NPP-B,E-40-KRR-B,GE40-KRR-B,GE40-KRR-B-FA164,GE40-KRR-B-FA101,
GNE40-KRR-B,GE40-KTT-B,GE40-KRR-B-2C,GE40-KLL-B,GRAE45-NPP-B,GE45-KRR-B,GE45-KTT-B,GE45-KLL-B
GRAE50-NPP-B,RAE50-NPP-B,GE50-KRR-B,GE50-KRR-B-FA164,GE50-KRR-FA101,GE50-KRR-B
INA Brand Bearing Picture For Your Reference ,For More INA Bearing Number ,Pls Contact With Me Free.
previous :
INA Agricultural Machinery Radial Insert Ball Bearing GRAE40-NPP-Bnext :
INA Radial Insert Ball Bearings GNE50-KRR-B
INA Brand Radial Insert Bearing GNE50-KRR-B with size 50*110*66.75mm are popular size which can used in the agricultural machinery .
GRAE40-NPP-B Radial insert ball bearing with Spherical outer ring ,location by eccentric locking collar ,p seals on both sides ,the size is 40*80*43.8mm
1.We can provide best quality of INA insert ball bearing 2. we can supply different bearing number 3. Free sample available for you 4.Fast delivery time 5. Best service
GRAE40-NPP-B Radial insert ball bearing with Spherical outer ring ,location by eccentric locking collar ,p seals on both sides ,the size is 40*80*43.8mm
GRAE25-NPP-B With Size 25*52*31mm are produce with Chrome steel material
GAY25-XL-NPP-B With Size 25*52*27mm and Chrome steel
