693 Ceramic Bearing 3x8x4 MM

new products

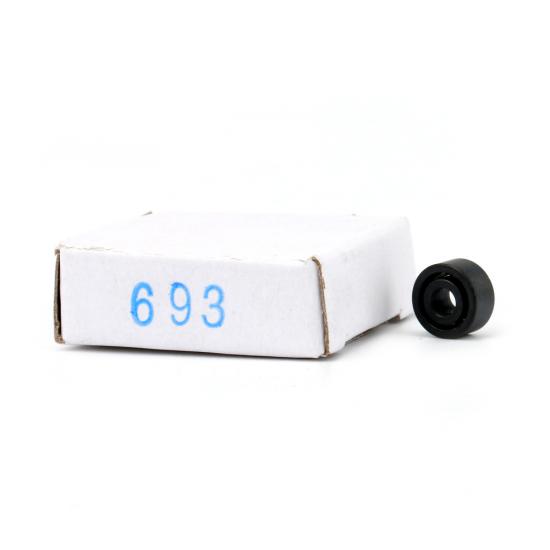

693 Ceramic Bearing 3x8x4 MM

693 bearings are produced with full ceramic material silicon nitride material , with this material ,the bearings can be use in high temperature and high speed area ,the inner size 3mm,outer size 8mm,the width is 4mm.

  • item no.:

    693
  • lead time:

    7 days after confirm order
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • color:

    black
  • MOQ:

    1
products details


693 Full Ceramic Bearing Introduction:


Bearing Number: 693  bearing

Type: Full Ceramic Ball bearing

Inner/outer races: Si3N4 Ceramic with PTFE cage

Balls:  Si3N4 Ceramic

Size:3x8x4mm

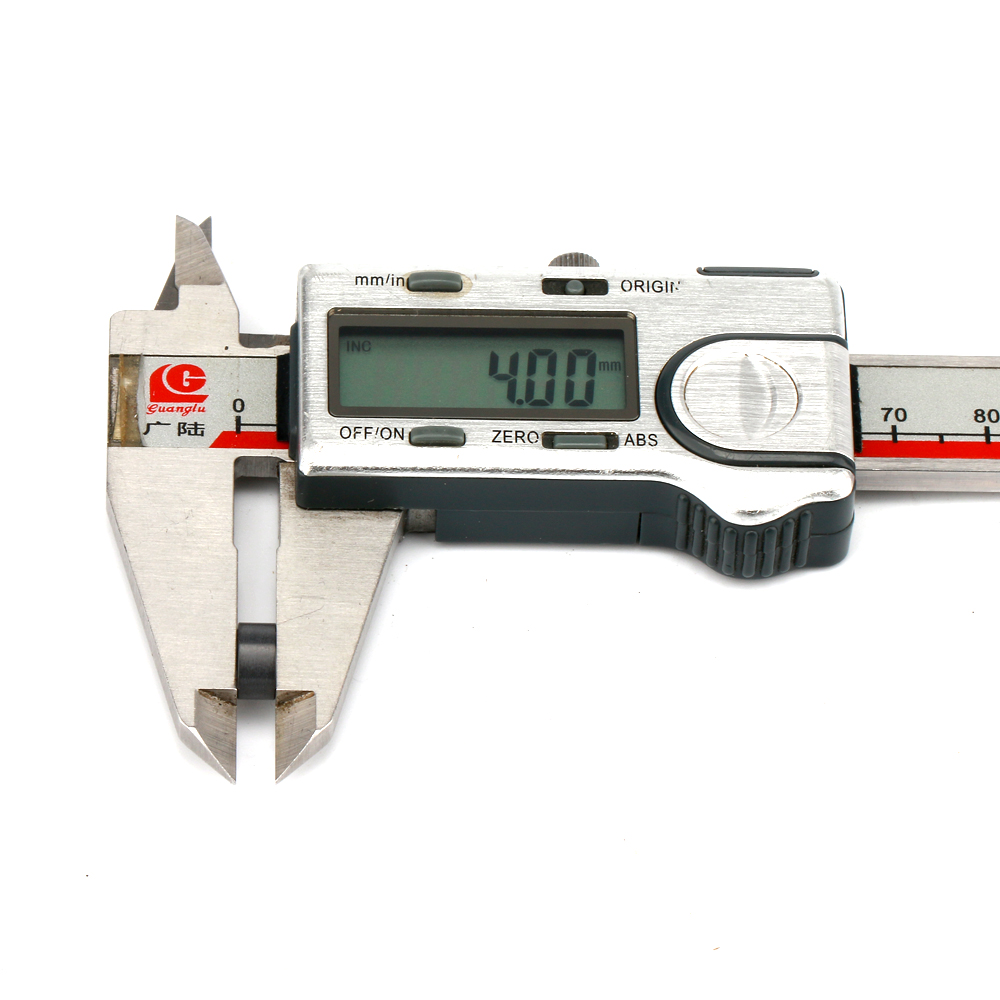

693 Bearing Size Pictures:

inner size 3mm
Outer size 8mm
Height 4mm




 Ceramic  Bearings Si3N4 With Ceramic Material Have Below Features:

1.Can working at high temperature 800 degree ~1300 degree

with low coefficient of friction ceramic bearing have the ability to withstand much higher speed without exceeding too high temparature than steel bearings

2.Anti coorrosion

ceramic resists acids alkali blood salt and water ,so it will not corrod or rust

3 .No grease required

Ceramic balls require less lubrication and have a greater harness than steel balls which will contribute to increase bearing life .

4. Highest spin time

Because the ceramic has low coeffient of friction ,it is good material for any application seeking to have a high RPM'S

ceramic bearing

ZZ BEARINGS Are Professional Bearing Manufacturer In China, We Can Produce Full Ceramic Bearing And Hybid Ceramic Bearing Work At High Temperature .


1) Full ceramic bearings with ZrO2/Si3N4/SiC material ---non-magnetism,electrical insulation,wear resistant,anti corrosive.

2) Hybrid ceramic bearings (Stainless steel ring with  hybrid balls or Chrome steel rings with  hybrid balls ) ---high speed,self-lubricated.

3) Precision ceramic balls (ZrO2/Si3N4/SiC/Al2O3) ---vacuum,high and low temp,high precision ball screw set,valve balls for acid,alkali and salt.

Bearing type Full or hybrid ceramic bearing
Bearing model 608,R188 ,MR83 ,6000,6001 ,6000SERIES,6200 SERIES
bearing material Si3N4,ZrO2,stainless steel ,chrome steel
Bearing cage  Si3N4,ZrO2,PTFE,Nylon


ceramic high temperature bearing type



Full Balls Bearing Application :

cearmic bearing can be working at any extree environment which require non-corrosize ,non-conductive or non-magnetic or high temperature area.


CERAMIC BEARING APPLICATION
